Details

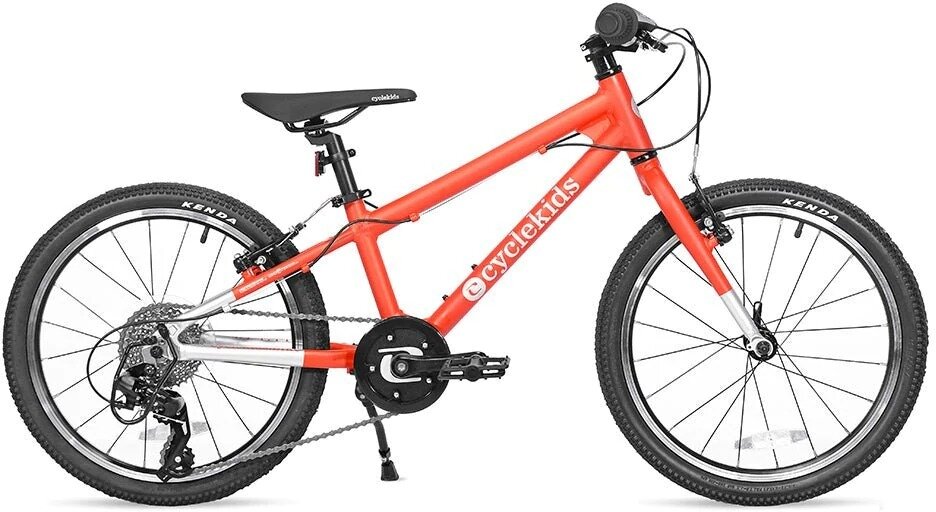

The 20" CYCLE Kids bike is the perfect introduction to gears. Weighing only 19.47 pounds and featuring 8 Speed Shimano Twist Shifters with clean, easy to read displays for effortless gear selection. Comes equipped with a lightweight aluminum frame and fork, double wall 20 hole alloy rims and smooth rolling Kenda Small Block Tires. Make their transition to gears an easy one.
20" Cycle Kids Bike | Measurement |
---|---|
A WHEEL / TIRE SIZE | 20" |
B SEAT TUBE LENGTH | 10" |
C SEAT TUBE ANGLE | 72° |
D HEAD TUBE LENGTH | 4.3" |
E HEAD TUBE ANGLE | 68° |
F EFFECTIVE TOP TUBE LENGTH | 17.7" |
G WHEELBASE | 32.48" |
H STANDOVER | 20.4" |
I HANDLEBAR HEIGHT | 30.15" |
J BOTTOM BRACKET HEIGHT | 9.35" |
Age | Wheel Size | Height | Inseam |
---|---|---|---|
1.5 to 3.5 | 12" | 31" to 40" | 12" to 16" |
4 to 6 | 16" | 41" to 47" | 14" to 17" |
6 to 9 | 20" | 45" to 51" | 16" to 21" |
7 to 11 | 24" | 49" to 57" | 20" to 23" |
10 to 14 | 26" | 55" to 65" | 22" to 26" |
14+ | 27.5" | 61" to 73" | 25" to 28" |
Specs
Frame | ULTRALITE 6061 ALUMINUM |
---|---|
Fork | ULTRALITE 6061 ALUMINUM |
Rims | MACHINED WALL ULTRALITE ALUMINUM |
Hubs |
FRONT: ALUMINUM W. SEALED BEARINGS REAR: ULTRALITE ALUMINUM |
Spokes | STAINLESS STEEL |
Tires | KENDA SMALL BLOCK 20 X 1.5 |
Crankset | 32T ALUMINUM W. WATERPROOF BOLTS & NARROW Q-FACTOR |
Shifters | SHIMANO TWIST SC R547-8R |
Rear Derailleur | SHIMANO RD TX800 SHORT CAGE |
Cassette/Freewheel | 11-32T |
Chain | KMC 8-SPEED |
Brakes | TEKTRO LINEAR PULL BRAKES |
Brake Levers | TEKTRO W. ALUMINUM LEVERS |
Tape/Grips | MTB EXTRA GRIP, SPECIAL SIZING |
Headset | ULTRALITE ALUMINUM |
Seatpost | 27.2MM X 250MM W. QUICK RELEASE |
Saddle | AGE SPECIFIC W. COMFORT FOAM |
Pedals | 9/16TH RESIN PEDAL |
* Subject to change without notice.
Part Numbers
Option | UPC | Store SKU |
---|---|---|
Lime Green / 20-inch | 016751862026 | 210000029341 |
Orange / 20-inch | 016751862064 | 210000029343 |
