Marin Nicasio + - 2024
$1,149.00
Details

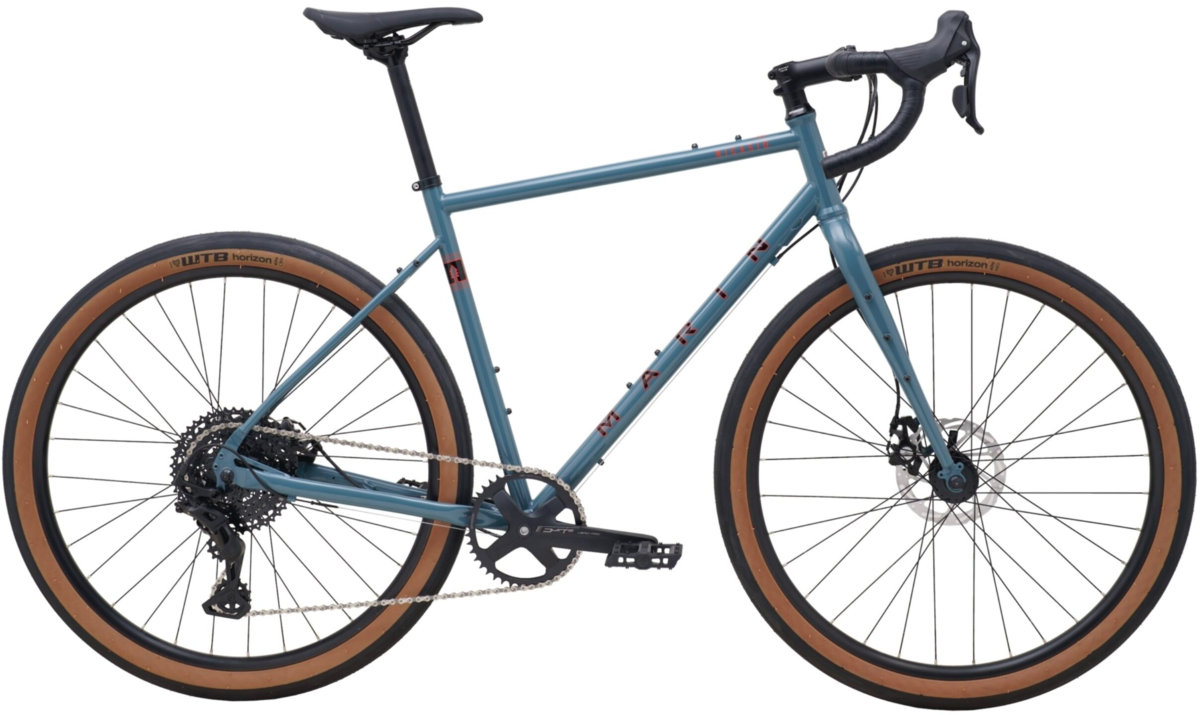

The Marin Nicasio+ is our Nic’ with a modern twist, switching in big-volume 47mm rubber, 650b wheels and a sleek and straightforward 1X drivetrain. We also specced a microSHIFT Sword Black 1x9 drivetrain, powerful Tektro mechanical discs and plenty of Marin components. Those WTB Horizon 650Bx47mm tires not only provide a cloud-like ride, but also look super dreamy with tan sidewalls.
| FRAME SIZE | 50 | 52 | 54 | 56 | 58 | 60 |
|---|---|---|---|---|---|---|
| STACK (mm) | 546 | 564 | 578 | 592 | 606 | 620 |
| REACH (mm) | 375 | 375 | 380 | 390 | 402 | 415 |
| HEADTUBE ANGLE | 70.5° | 71.5 | 71.5 | 71.5 | 71.5 | 71.5 |
| HEADTUBE LENGTH (mm) | 105 | 120 | 135 | 150 | 165 | 180 |
| SEATTUBE ANGLE | 74.5° | 74° | 74° | 74° | 74° | 73.5° |
| SEATTUBE LENGTH (mm) | 460 | 480 | 500 | 520 | 540 | 560 |
| TOPTUBE EFFECTIVE (mm) | 526 | 537 | 546 | 560 | 575 | 599 |
| BB HEIGHT (mm) | 269 | 269 | 269 | 269 | 269 | 269 |
| BB DROP (REAR/FRONT) (mm) | 76 | 76 | 76 | 76 | 76 | 76 |
| CHAINSTAY (mm) | 430 | 430 | 430 | 430 | 430 | 430 |
| WHEELBASE (mm) | 1017 | 1014 | 1024 | 1039 | 1055 | 1073 |
| STANDOVER HEIGHT (mm) | 713 | 733 | 752 | 770 | 788 | 806 |
| FORK OFFSET (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| SEATPOST DIAMETER (mm) | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| HANDLEBAR WIDTH (mm) | 400 | 400 | 420 | 420 | 440 | 440 |
| STEM LENGTH (mm) | 75 | 75 | 90 | 90 | 90 | 90 |
| CRANK LENGTH (mm) | 170 | 170 | 175 | 175 | 175 | 175 |
Specs
| Frame | Steezy Double Butted CrMo Beyond Road, 650B Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount |
|---|---|
| Fork | CrMo, Fender and Rack Eyelets, IS Disc Mount |
| Rims | Marin Aluminum Double Wall, 25mm Inner, Disc Specific |
| Hubs | Forged Aluminum Alloy, Disc, 32H |
| Spokes | 14g Black Stainless Steel |
| Tires | WTB Horizon, 650Bx47mm |
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
| Crankset | FSA Vero Pro, Narrow Wide, 42T |
| Shifters | microSHIFT SWORD Black, 1x9 Specific |
| Rear Derailleur | microSHIFT SWORD Black, 1x9 w/ Clutch Mech |
| Cassette/Freewheel | microSHIFT 9-Speed, 11-46T |
| Chain | KMC X9 |
| Brakes | Tektro MDC400, Road Mechanical, 160mm Rotor |
| Brake Levers | microSHIFT SWORD Black |
| Handlebars | Marin Butted Alloy, Compact 16º Flared Drop |
| Tape/Grips | Marin Comfort Tape |
| Stem | Marin 3D Forged Alloy |
| Headset | FSA ORBIT CE No.8B, Sealed Cartridge Bearings |
| Seatpost | Marin Alloy, 27.2mm |
| Saddle | Marin Beyond Road Concept |
| Pedals | Commute Platform |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Grey / 54cm / 650b | 843346130112 | 739071003 | 210000037567 |
| Grey / 56cm / 650b | 843346130129 | 739071004 | 210000037606 |
