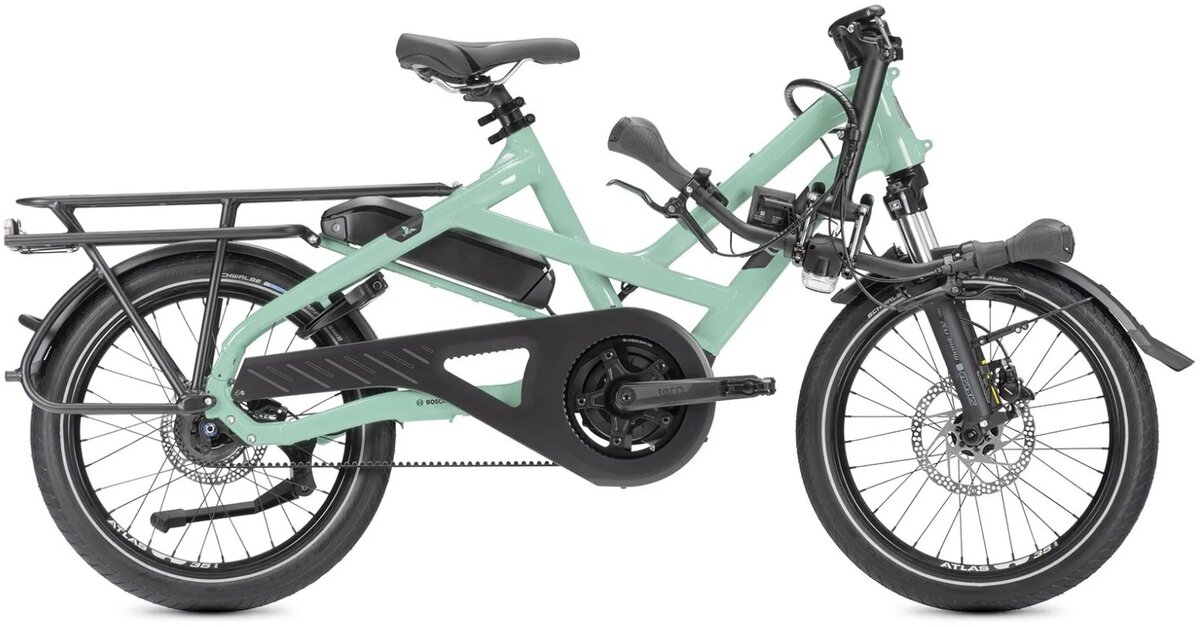

Tern HSD P5i
Details
Mighty But Mini
The HSD is the right amount of bike if you want the benefits of a cargo bike but still fancy the convenience and handling of something less bulky. Lean and nimble, the HSD is shorter than a regular bike yet capable of hauling a max gross vehicle weight (MGVW) of 180 kg (397 lb). And thanks to best-in-class components, rigorous lab testing, and UL 2849 certification, you can count on having a safe, reliable bike.
What makes it a P5i?
- Class 1 Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
- Detachable and easy-to-understand Intuvia 100 display
- Silent, smooth, and virtually maintenance-free Gates CDX Belt Drive
- Shimano Nexus INTER-5E internally geared hub
HSD Highlights:
- Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
- Bosch PowerPack 545 battery provides a long range of up to 121 km (76 mi)
- Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
- Fits riders 150 - 195 cm (4'11" - 6'5") with an easily-adjustable cockpit
- Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight
SUGGESTED RIDER HEIGHT: 150 - 195 cm (59.1 - 76.8 in)
Specs
| Frame | Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg |
|---|---|
| Fork | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg |
| Wheels | Tern Atlas H, cargo wheel |
| Rims | Tern Atlas H, wide 35 mm |
| Hubs |
FRONT HUB: Novatec, Thru-axle, sealed bearings REAR HUB: Shimano Nexus INTER-5E |
| Spokes | Stainless steel |
| Tires | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Bottom Bracket | Motor integrated |
| Crankset | Tern HSD custom, Gates CDX CNC machined beltring |
| Shifters | Shimano Nexus INTER-5E |
| Cassette/Freewheel | Gates CDX, precision CNC machined cog |
| Chain | Gates Carbon Drive CDX belt |
| Brakes |
FRONT BRAKE: Shimano, hydraulic disc, 180 mm rotor REAR BRAKE: Shimano, hydraulic disc, 160 mm rotor |
| Brake Levers | Shimano, hydraulic disc |
| Handlebars | Tern Sweep, 6061-AL, Tern Andros adapted |
| Tape/Grips | Ergon |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Headset | Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated |
| Seatpost | Tern Telescope, 34.9/30.9 mm, 2014-AL |
| Saddle | Tern Upright by Velo |
| Pedals | Urban with non-slip surface |
| Accessories & Extras |
BELL: Pitch Plus, brass CHAINGUARD: Tern Custom, full chain cover KICKSTAND: Ursus, rear mount LUGGAGE SOCKET: Combo Mount FRONT LIGHT: Tern Valo Direct, 190 lumens REAR LIGHT: Herrmans H-Trace, for eBike FENDERS: SKS, stainless hardware RACK(S): Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity FRAME LOCK: ABUS, keyed-alike with Bosch battery |
| Motor | Bosch Performance, 340% Assist, 75 Nm Torque, Class 1 max speed 20 mph (US) |
| Battery | Bosch PowerPack 545 |
| Controller/Display | Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock |
| Charger | 220V, 4A (EU); 100-240V, 4A (US) |
* Subject to change without notice.
