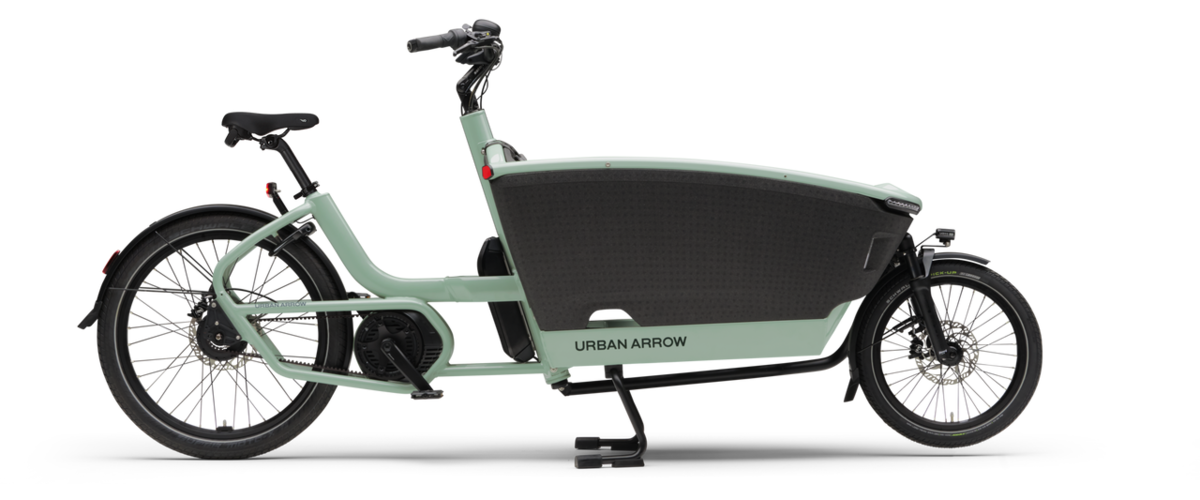

Urban Arrow FamilyNext Pro
$9,199.00
Details
Your ride is about to just get even better
The Urban Arrow FamilyNext comes with everything you’ve come to love and expect from us. Build to the highest standards, it offers the most spacious design and is equipped with the best of the best components from our trusted, premium partners in the biking industry. The lowered centre of gravity makes you feel stable and comfortable.
This is family transport redefined. Sleek, spacious and incredibly smooth. Discover more about the new features of the Urban Arrow FamilyNext now.
Max total weight: 550 lbs (bike + rider + load)/ 250kg
Max front load: 275 lbs/125 kg
Max rider weight: 275 lbs/ 125 kg
Specs
| Frame | UA4.5, Aluminum |
|---|---|
| Fork | Suspension fork, Suntour Mobie34 CGO Boost, 20", 60mm |
| Rims |
Front: Ryde Andra 40 20” Rear: Ryde Andra 29 26” |
| Hubs | Enviolo Heavy Duty |
| Tires |
Front: Schwalbe Pick Up 55-406 Rear: Schwalbe Super Moto X 62-559 |
| Crankset | Miranda Delta 0 Gen 4 |
| Chainrings | Gates Carbon Belt Drive CDX 120T |
| Shifters | Enviolo Twist Display pro |
| Cassette/Freewheel | Gates Carbon Drive CDX 50T |
| Brakes | Magura CMe, 8.S Pads |
| Rotors |
Front: Magura 180mm MDR-C Rear: Magura 203mm MDR-C |
| Handlebars | Ergotec Moon cruiser 31.8mm |
| Tape/Grips | Ergon GC10 (130 / 90mm) |
| Stem | UA 110mm 31.8mm adjustable |
| Seatpost | UA seat post with groove 31.6mm |
| Saddle | Selle Royal On Relaxed Royal Gel |
| Pedals | VP 836 |
| Accessories & Extras |
Spanninga Plateo XE 6V-36V Rear Light Lezyne Power E115 + Design LED Lights Front Light SKS PET A 65R 26” matt black Fenders |
| Motor | Bosch Cargo Line Gen 4 BES3, 250W - max 85 Nm |
| Battery | Bosch Powerpack 545Wh |
| Controller/Display | Bosch LED Remote + KIOX 300 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Green / One Size / 20-inch front / 26-inch rear | 8721052929126 | BUA0665 | 210000038156 |
